SPINAL SYSTEM

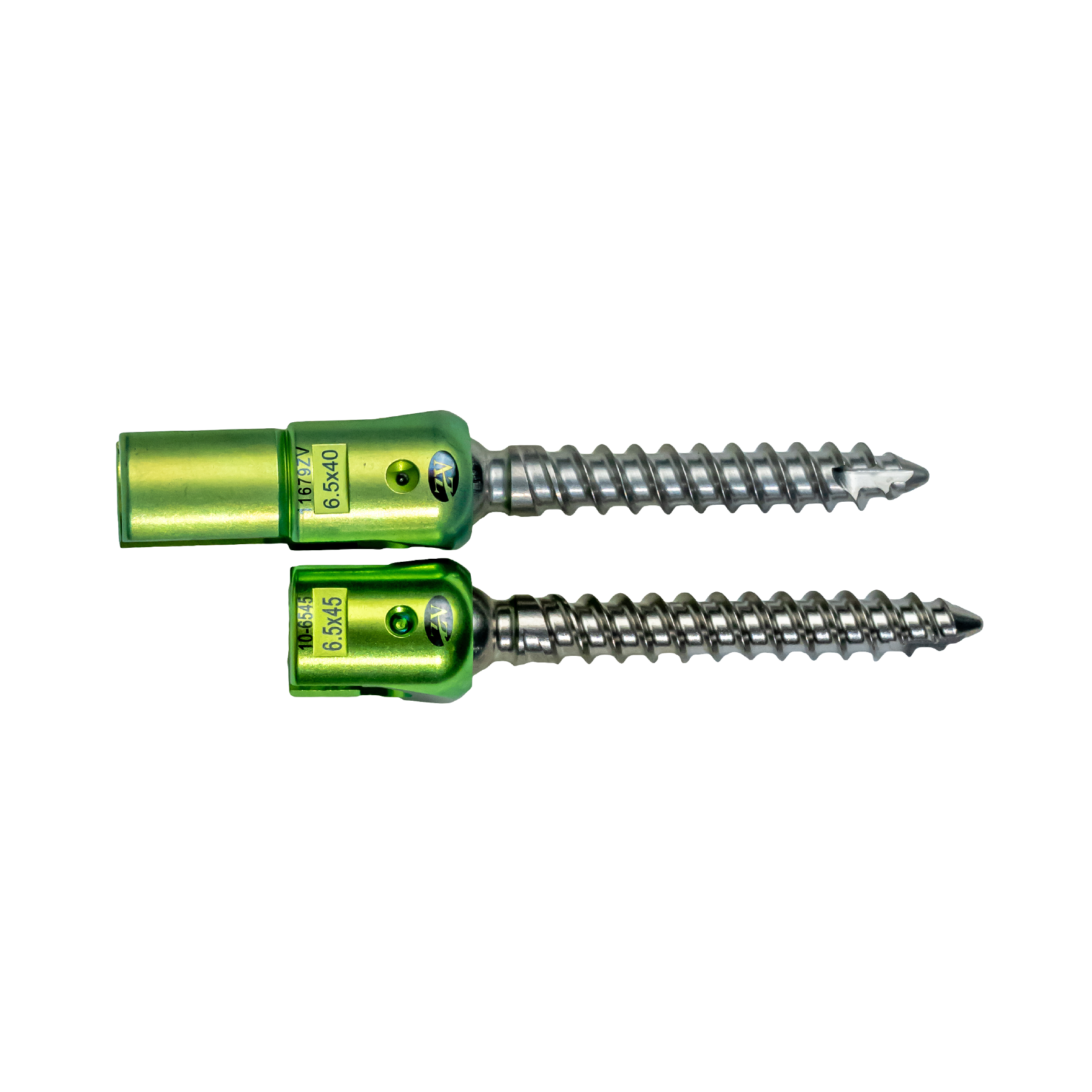

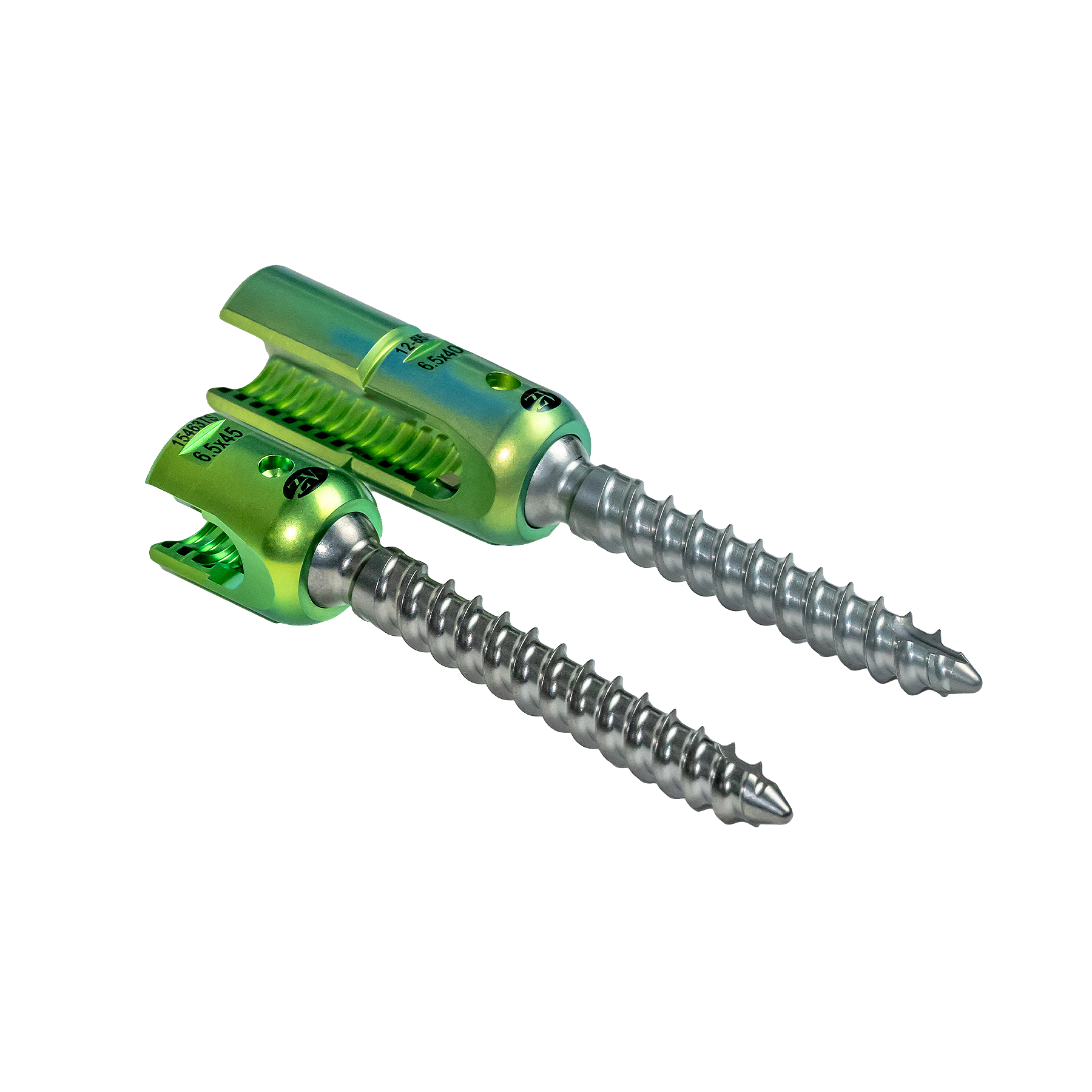

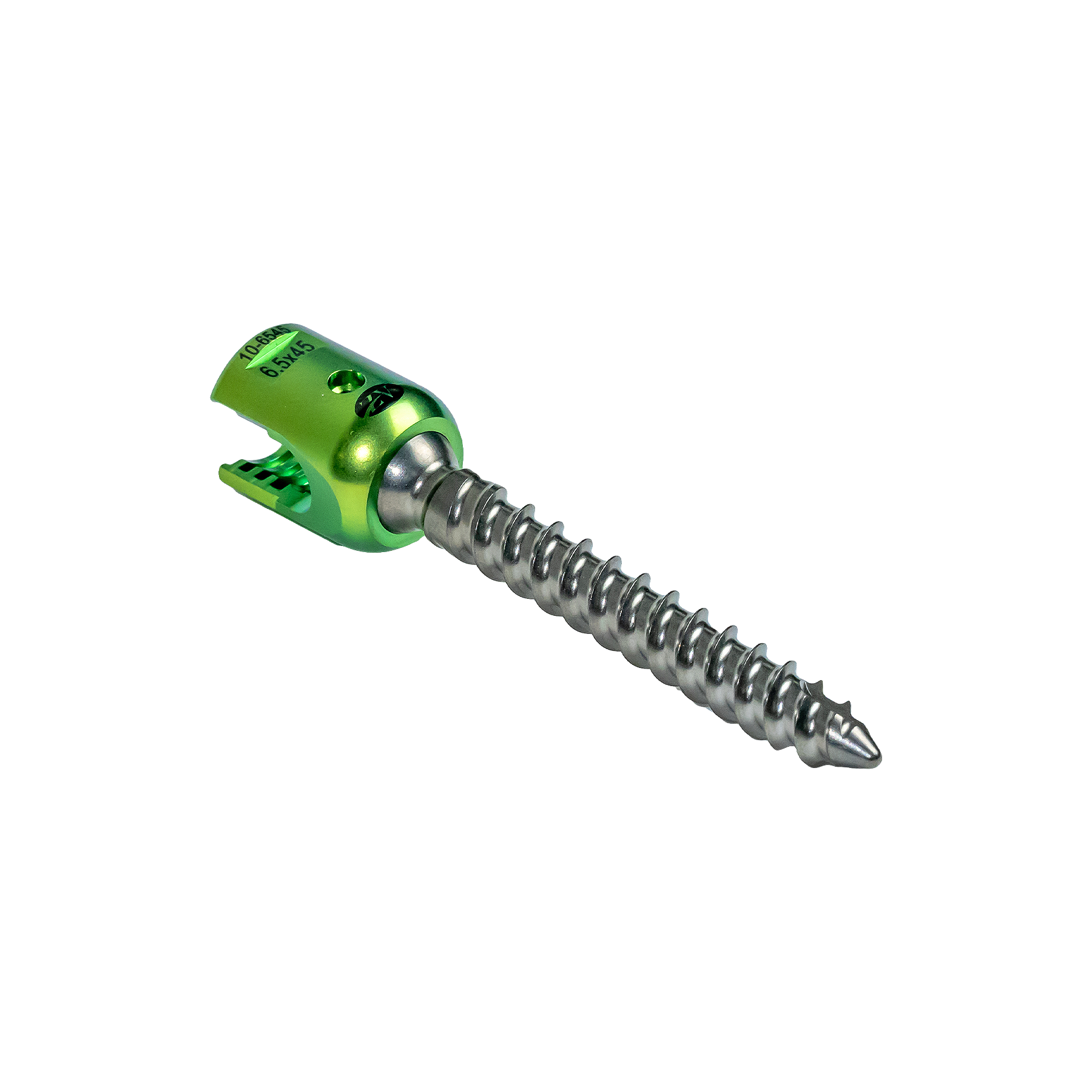

Zavation’s Spinal System offers a comprehensive set of polyaxial screws, straight and pre-bent rods, and cross connectors for multi-level spinal fixation.

Features

  • Standard and Cannulated versions
  • 25° (50° cone) variable head angulation
  • Screw will accept 5.5mm or 6.0mm rod
  • Square thread on set screw to prevent cross threading
  • Reverse angle set screw threads prevent head splay

Specifications

SCREW DIAMETERS4.5mm, 5.5mm, 6.5mm, 7.5mm, and 8.5mm
4.5mm and 5.5mm SCREW LENGTHS25mm – 65mm (5mm increments)
6.5mm, 7.5mm, and 8.5mm SCREW LENGTHS25mm – 100mm (5mm increments)
ROD DIAMETERS5.5mm and 6.0mm
STRAIGHT ROD LENGTHS40mm – 450mm
PRE-BENT ROD LENGTHS35mm – 120mm
ROD CROSS CONNECTORS32mm – 100mm
Request InformationDistributor Portal

Related Products

TIGER® 2 PEDICLE SCREW SYSTEM

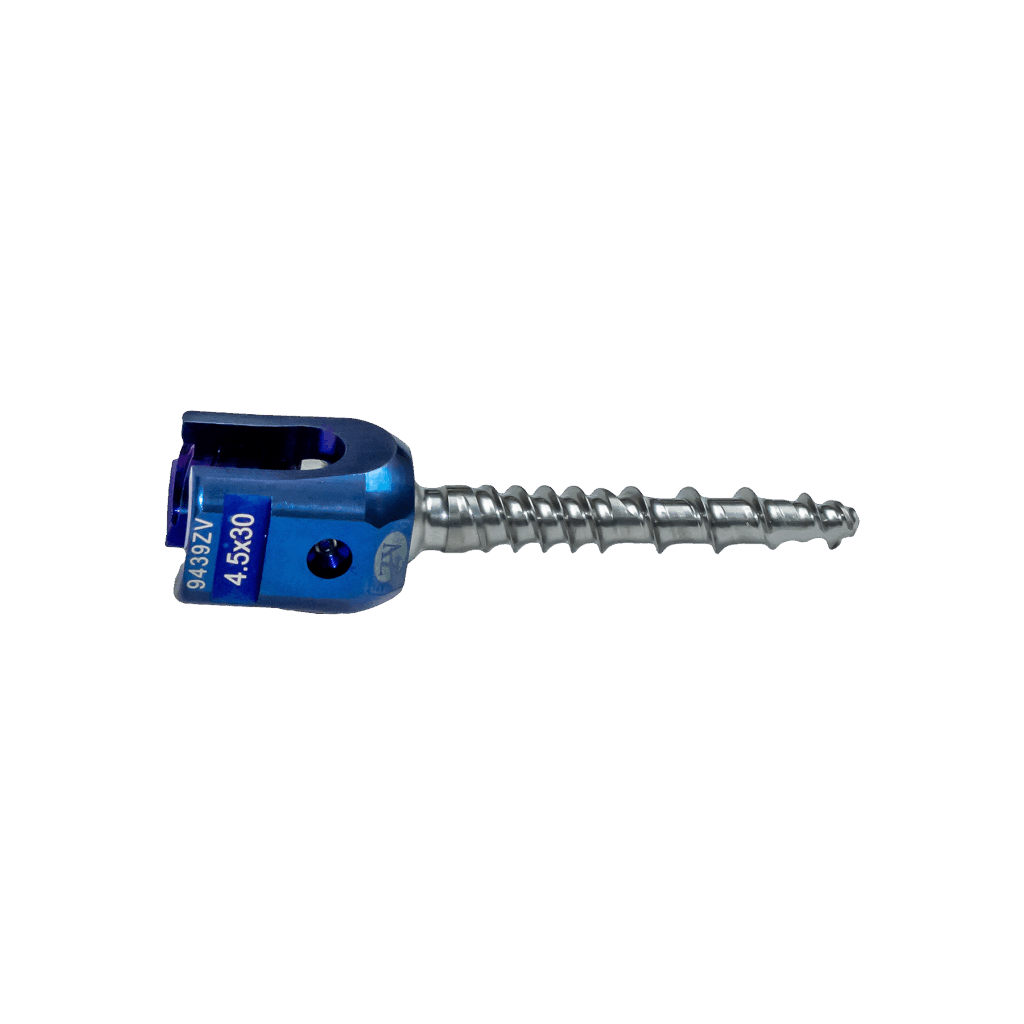

CORTICAL SCREW SYSTEM
