BOOMERANG® ANTERIOR CERVICAL PLATE SYSTEM

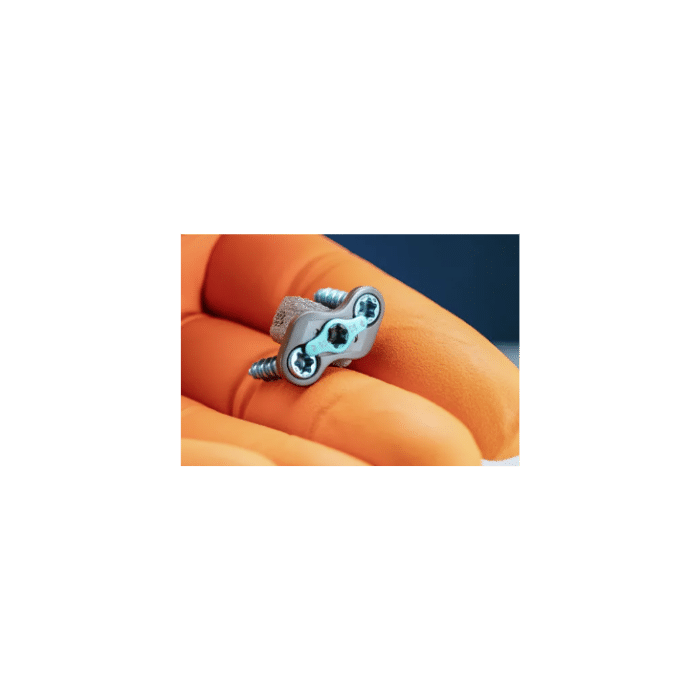

The Boomerang® Anterior Cervical Plate System is a low-profile, two-screw implant that can be inserted simultaneously with our TigerShark® C 3D-Printed Titanium Interbody or Stealth™ PEEK Interbody. Boomerang has an integrated single-step screw locking mechanism for fast insertion and fixation to the anterior cervical spine. In addition, the plate’s low-profile offset design allows Boomerang® to be used for multiple adjacent levels and is an excellent option for revision surgery.

Features

  • Traditional 510(k) plate clearance for cervical use
  • Boomerang was tested against a traditional plate in compression bending and torsion for strength
  • Stackable to accommodate multiple adjacent levels

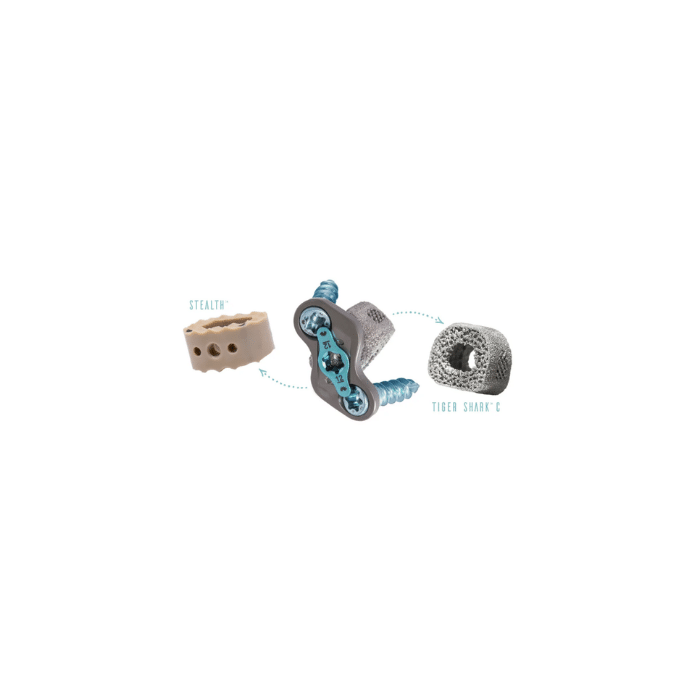

  • Insert together using TigerShark® C or Stealth™ cervical interbody to limit steps in the operating room

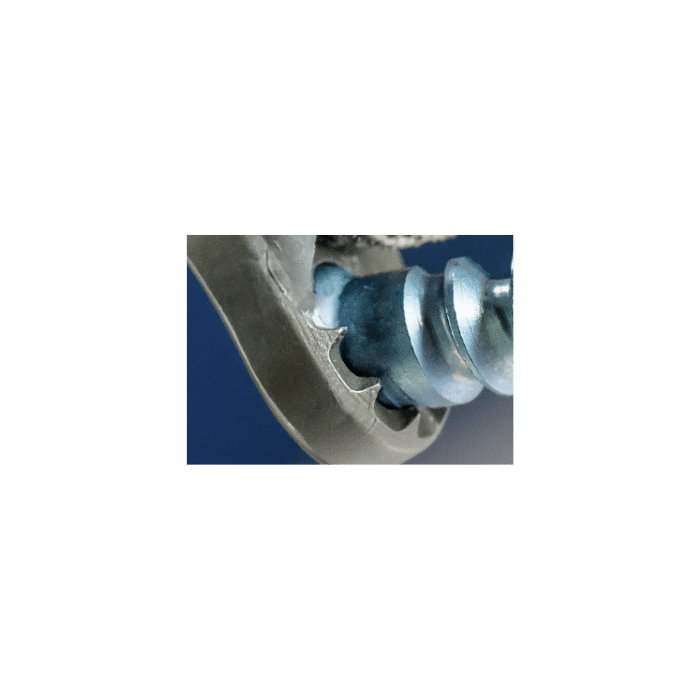

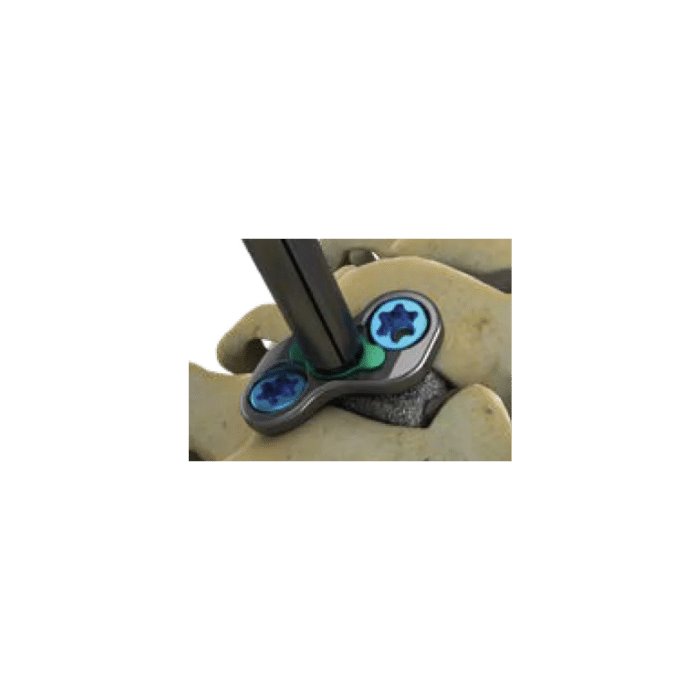

  • Integrated single-step screw locking mechanism allows for visual and tactile confirmation of locking
  • 20° maximum cranial/caudal screw angulation
  • Easy to use and minimal instrumentation

Specifications

Plate Sizes (screw-to-screw)10mm - 13mm
Optional sizing14mm, 16mm, and 18mm, (1mm increments)
Overall Plate SizePlate Size + 7.5mm
Plate Width15mm
Plate Thickness2.2mm
Screw DiametersØ4.0mm and Ø4.5mm
Screw Lengths10mm - 16mm (2mm increments)
Request InformationDistributor Portal

Related Products

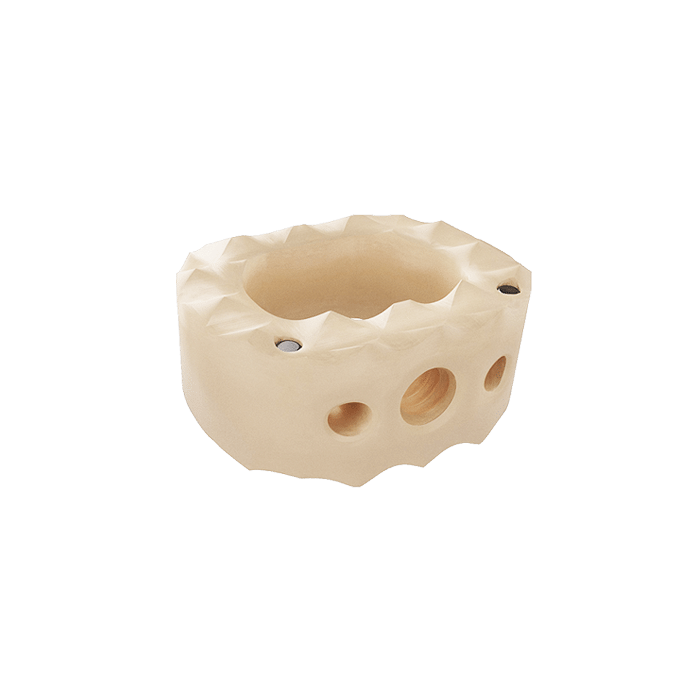

STEALTH™ CERVICAL INTERBODY SYSTEM
